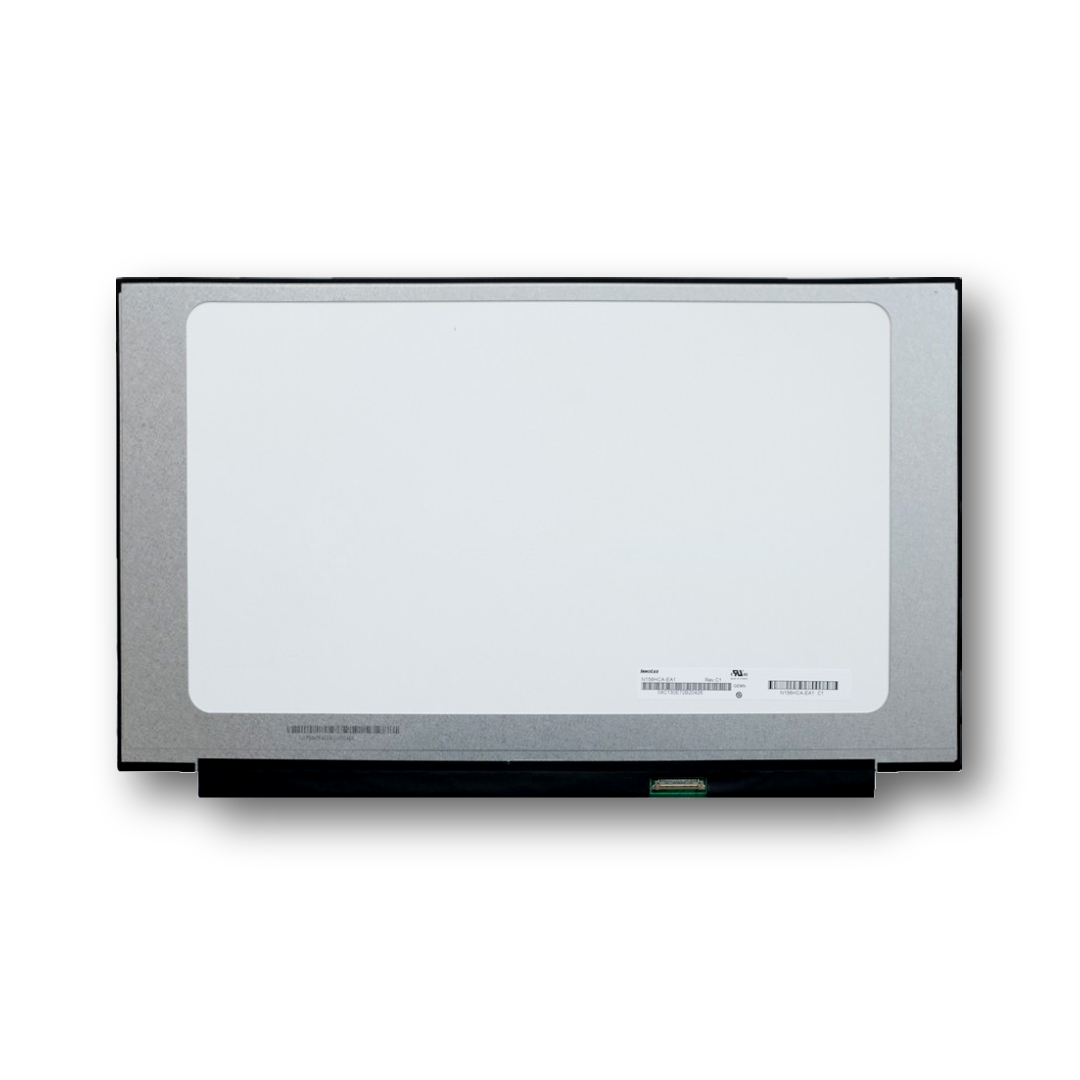

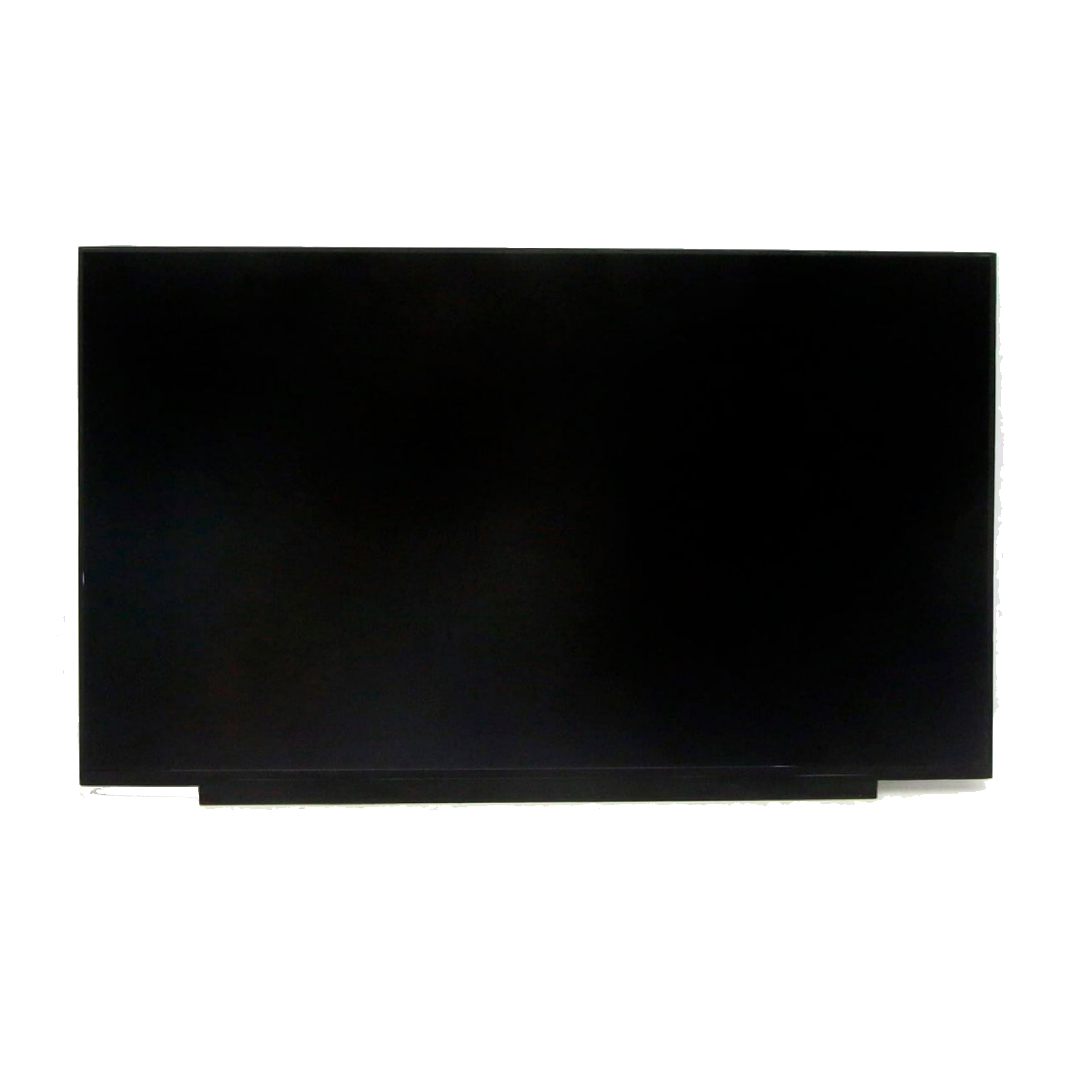

HKC MB156CN01-1 15.6 Inch 30 Pin 2 Lane eDP IPS Screen – No Bracket
Upgrade your laptop display with the HKC MB156CN01-1, a high-performance 15.6-inch IPS screen designed for clarity, durability, and vibrant visuals. This screen is ideal for replacing faulty displays or upgrading your laptop for better performance.
Key Features
| Feature | Details |
|---|---|
| Brand | HKC |
| Model P/N | MB156CN01-1 |
| Diagonal Size | 15.6″ |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, WSXGA+, 141 PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Outline Size | 350.66(W)×216.25(H)×3.2(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/30 (CR≥10) – Left/Right/Up/Down |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 16ms (Typ.) |
| Display Colors | 262K, 45% NTSC |
| Lamp Type | WLED, 15K hours, with LED Driver |
| Frequency | 60Hz standard, with 120Hz/240Hz options (embedded MEMC circuit) |
| Touch Screen | No |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30 pins connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50°C; Storage Temp.: -20 ~ 60°C |
Warranty
- Coverage: 3 months replacement warranty.
- Not Covered: Physical damage, burning, liquid damage, or misuse.
Important Notes
- Compatibility: This screen is compatible with various models. Contact us via WhatsApp or email to confirm compatibility before placing your order.
- Caution: Always disconnect all power sources, such as the battery and adapter, before assembling or disassembling the screen or touching the screen cable.
Why Choose the HKC MB156CN01-1 Screen?
- Stunning Visuals: Full HD resolution with vibrant color accuracy.
- Durable Design: Slim and sturdy build with antiglare and hard coating.
- Wide Compatibility: Works with numerous laptops (contact for details).
- Reliable Warranty: 3 months replacement guarantee for peace of mind.
Upgrade your laptop’s display with the HKC MB156CN01-1 for an enhanced viewing experience and unmatched performance. Order now!
